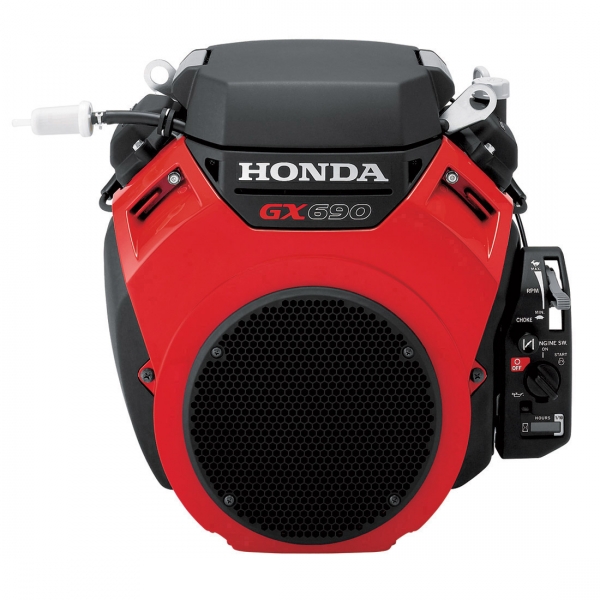

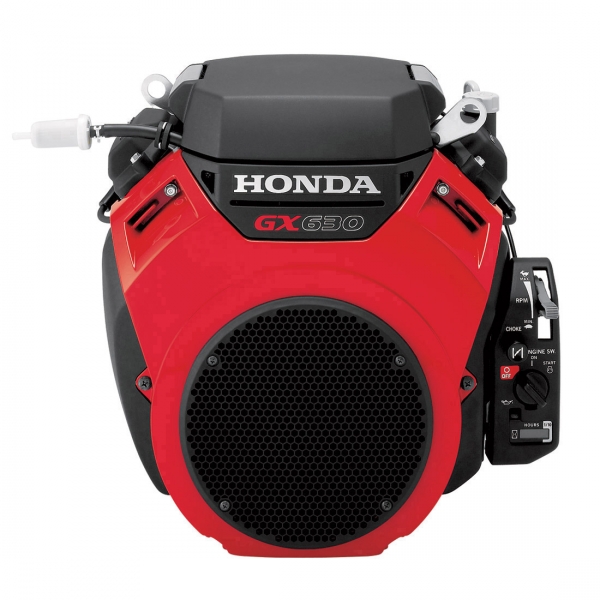

HONDA V-TWIN ENGINE GX630/690

Raising the bar. On everything. Common Applications Pressure washers Commercial lawn and garden equipment Tillers / cultivators Generators Forestry equipment Construction / industrial equipment Agricultural equipment Small vehicles Water pumps

More details

More info

Fuel Efficient Operation

Fuel economy is similar to fuel injection, with the simplicity of carburetion.
Digital CDI ignition system with variable timing
Two barrel inner-vent carburetor for more precise fuel metering

High Output Performance

Hemispherical combustion chamber delivers rapid combustion
9.3:1 compression ratio generates high power output without the need for premium fuel
Forged steel crankshaft
Pressure fed crankshaft bearings

Smooth Performance

Integrated cylinder and head
Racing inspired forged steel connecting rods

Exceptionally Quiet

High capacity 36 blade cooling fan
Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation

Proven Reliability

High capacity pump facilitates consistent oil delivery
Dual cylindrical air filter
Large diameter air intake for superior cooling
3-Year Limited Warranty
Oil Alert
Includes a rev limiter to protect against damage from over-speeding.
Insert style rod bearings

Easy to Use and Maintain

Hour meter available
Conveniently located controls, with several configurations available based on user preference
Automotive-type spin-on oil filter

Easy Starting

Automatic mechanical de-compression system
Variable ignition timing

Emissions Compliant

No catalyst necessary

Available Options

High capacity charging systems
A variety of control box configurations
Hour meter

SPECIFICATIONS

	GX630	GX690
Engine Type	Air-cooled 4-stroke OHV	Air-cooled 4-stroke OHV
Bore x Stroke	78 X 72 mm	78 X 72 mm
Displacement	688 cm3	688 cm3
Net Power Output*	20.8 hp (15.5 kW) @ 3,600 rpm	22.1 hp (16.5 kW) @ 3,600 rpm
Net Torque	35.6 lb-ft (48.3 Nm) @ 2,500 rpm	35.6 lb-ft (48.3 Nm) @ 2,500 rpm
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)
Compression Ratio	9.3:1	9.3:1
Lamp/Charge coil options	2.7A, 17A, 26A	2.7A, 17A, 26A
Carburetor	Horizontal type, two barrel butterfly valve, internal vent	Horizontal type, two barrel butterfly valve, internal vent
Ignition System	Digital CDI with variable ignition timing	Digital CDI with variable ignition timing
Starting System	Electric	Electric
Lubrication System	Forced lubrication	Forced lubrication
Governor System	Mechanical	Mechanical
Air Cleaner	Dual element	Dual element
Oil Capacity	2.1 US qt (2.0l)	2.1 US qt (2.0l)
Fuel	Unleaded 86 octane or higher	Unleaded 86 octane or higher
Dry Weight	96.8 lb (44 kg)	96.8 lb (44 kg)

DIMENSIONS

	GX630	GX690
Length (min)	15.9" (405 mm)	15.9" (405 mm)
Width (min)	16.1" (410 mm)	16.1" (410 mm)
Height (min)	17.2" ( 438 mm)	17.2" ( 438 mm)
