Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 800 is engineered to increase efficiency and operator comfort.

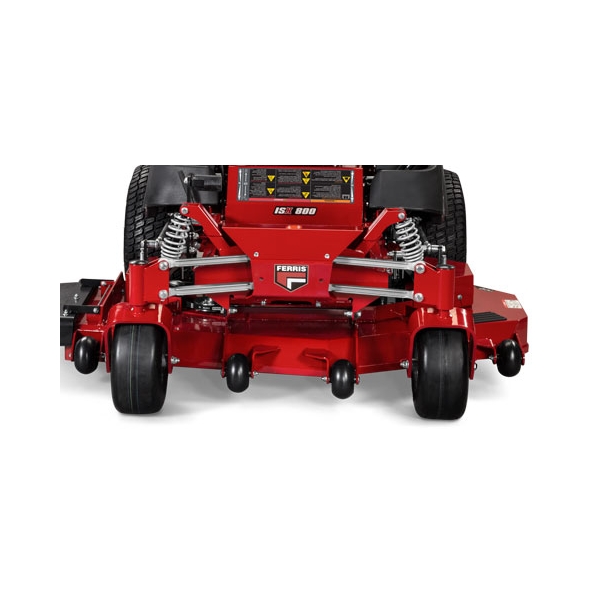

Forefront™ Suspension System
The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

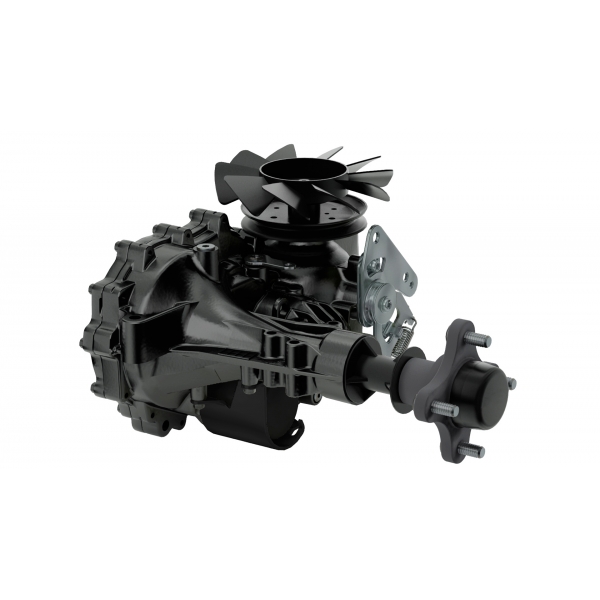

Integrated Transmission
Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.
EFI-ETC Engine Technology
Models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.

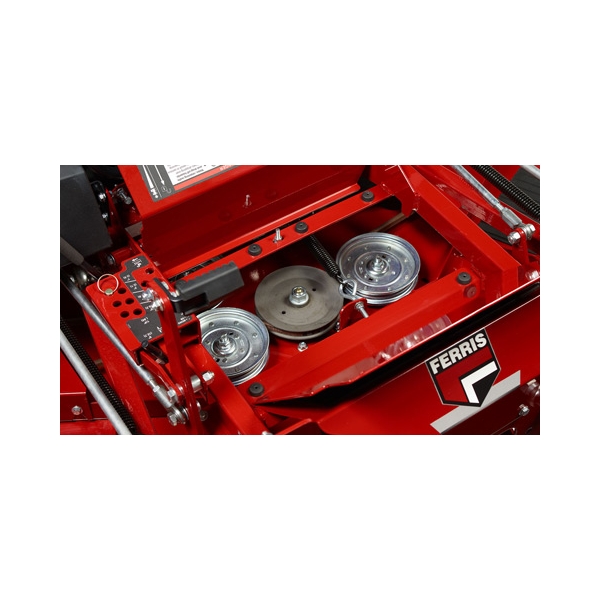

Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

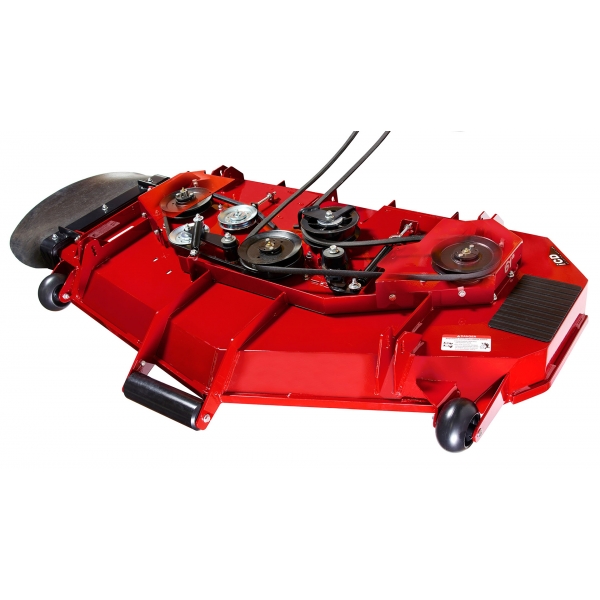

iCD™ Cutting System
iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).
Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.
Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

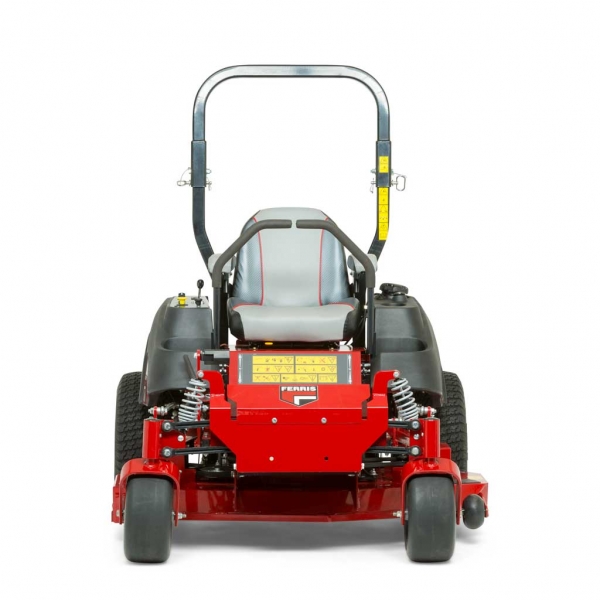

ISX™ 800
| HP (Gross)* | 27 |
| Engine Brand | Briggs & Stratton Commercial Series™ |
| Power Take Off (PTO) | Electric |
| Number of Cylinders | V-Twin |
| Starting | Electric |
| Fuel Capacity (L) | 20.8 |
| Deck Type | Side Discharge |
| Cutting Width (cm) | 132 (52) |
| Cutting Height (cm) | 3.8 - 12.7 (1.5 - 5) |
| Deck Construction | iCD™ Cutting System; 10-gauge, fabricated double top deck, double reinforced side skirts, overlap welded corners |
| Spindles | Heavy Cast-Aluminium Greasable |
| Suspension | ForeFront™ Suspension System - Front independent with four steel control rods |
| Drive Axels (in) | 2.9 (1.125) Tapered |
| Drive Tyres (in) | 23 x 10.5" - 12" |
| Caster Tyres (in) | 13 x 6.5" - 6" |
| Ground Speed - Fwd (km/h) | 0 - 16.1 |
| Ground Speed - Rev (km/h) | 0 - 8.1 |
| Overall Length (cm) | 206 |
| Dry Weight (kg) | 508 |
| Roll-over Protection System | Standard |
| Instrumentation | Dual-function hour meter, fuel level gauge in each tank |
| Controls | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit |
| Balance of Machine Warranty† | 2+2 Warranty - 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads |
