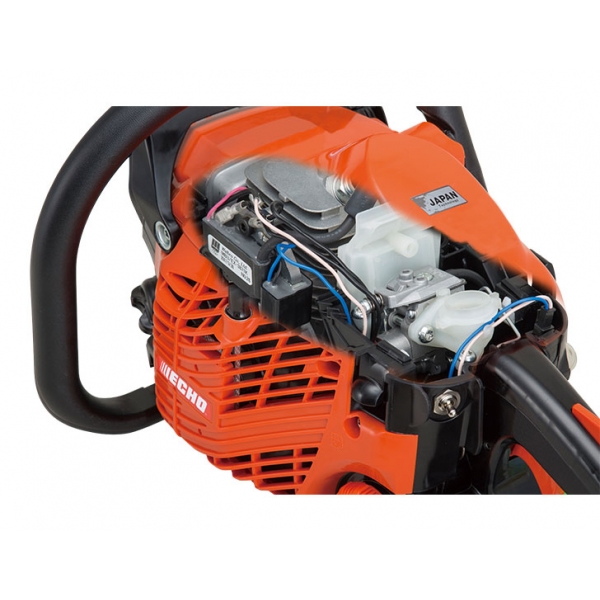

Built for casual users and farmers who require a reliable all-round saw that gets straight to the job. The auto choke feature on this model controls the amount of fuel depending on the engine's temperature giving optimal performance and negating the need for a choke lever. The powerful 34.4cc engine is manufactured in Japan to the highest standards, combine this with a slimline, ergonomic body that weighs just 3.8kg and you have a super manoeuvrable, compact and powerful saw.
Auto choke controls fuel supply automatically on startup, so no choke lever action is required. Simply prime the engine and pull the starter rope to start.
Feature packed for comfort and performance
Momentary stop switch for quick and easy engine restart
Transparent fuel tank for easy level checks
Side access chain tensioner for quick chain adjustment
Automatic clutch-driven oiler only supplies oil to the chain when it is moving
G-Force Engine Air Pre-Cleaner for better performance and lower maintenance
Rolling style chain catcher

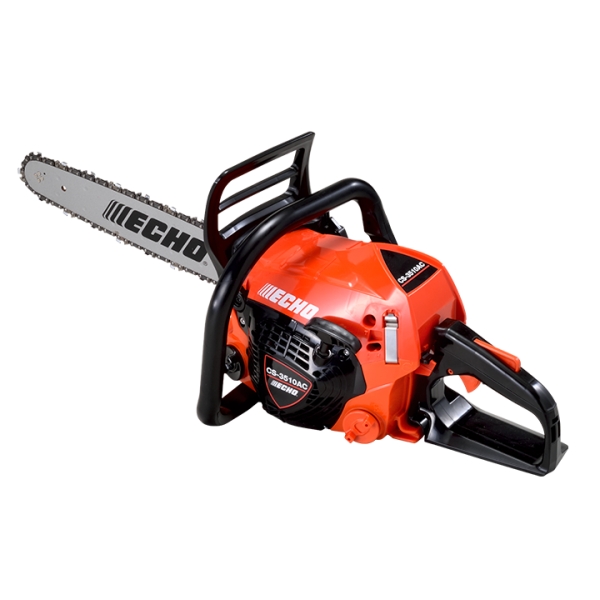

The CS-3510AC is slim and lightweight for exceptional manoeuvrability. The powerful 34.4cc engine means you will power through jobs effortlessly.
Product Details
| Engine displacement (cm³) | 34.4 |
|---|---|
| Output (kW) | 1.51 |
| Output (ps) | 2.05 |
| Dry Weight (kg) | 3.8 |
| Fuel tank capacity (l) | 0.28 |
| Chain Oil Tank Capacity (mL) | 230 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.85 |
| Priming Pump | YES |
| Ignition System | CDI |
| Start Assist System | ES-Start |
| Chain Brake | Inertia |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.043, 0.050 |
| Applicable Bar Length (cm/inch) 1 | 30, 35, 40 / 12, 14, 16 |
| Vibration Front handle/Rear handle (m/s²) | 4.4 / 3.9 |
| Sound power level (dB(A)) | 110.2 |
| Sound pressure level (dB(A)) | 101.0 |
| CO² (g/kW・h) 2 | 854 |
