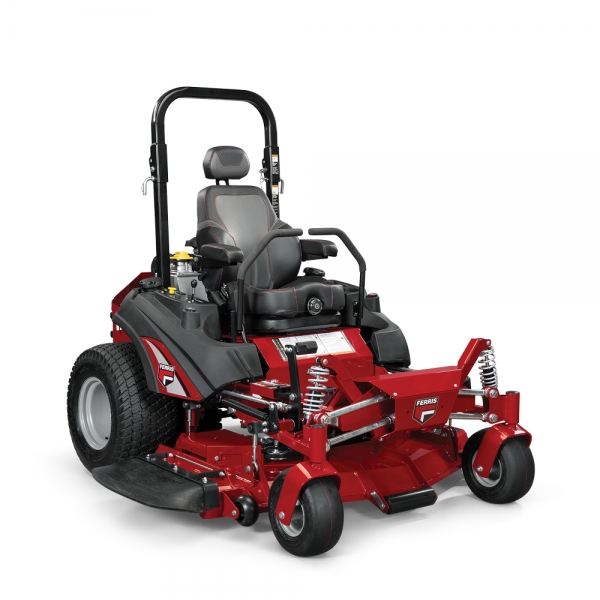

FERRIS - ISX3300Z - 28HP 60" & 72" ZERO TURN

60" & 72" CUT  -  37HP BRIGGS - SUSPENSION MODEL

More details

$28,888.00 tax incl.

ISX3300Z

  THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

Featuring next generation suspension technology – ForeFront™ Suspension, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system, and travel speeds up to 19.3 kph. Now with EFI-ETC technology for fuel savings, easy starting, and smooth, consistent productivity.

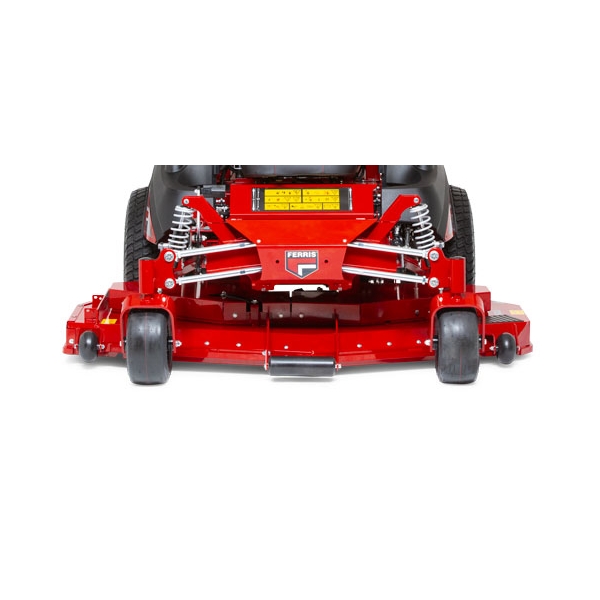

Forefront™ Suspension System

The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.



500 Hour Oil Change

Vanguard™ Engines with Oil Guard™ System reduce maintenance time and costs by up to 60%.**

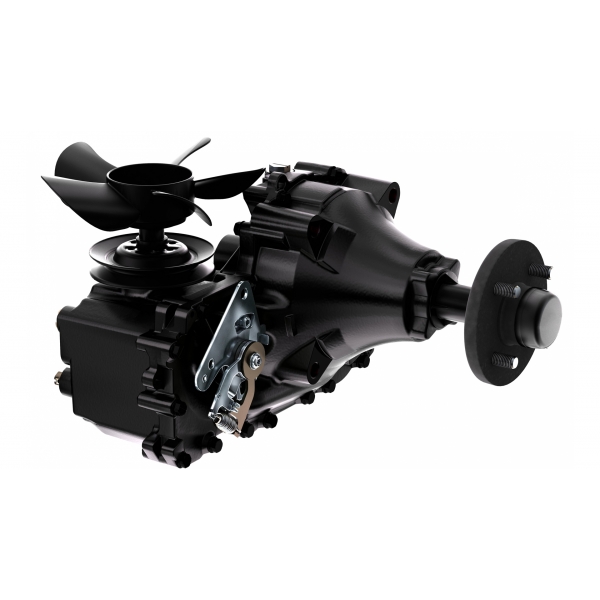

Drive System

Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans

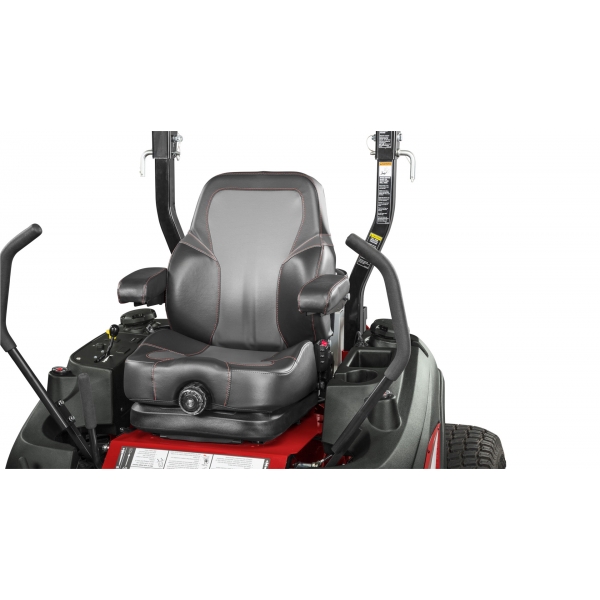

Premium High-Back Suspension Seat

Mow in superior comfort with arm rests, adjustable lumbar and seat recline

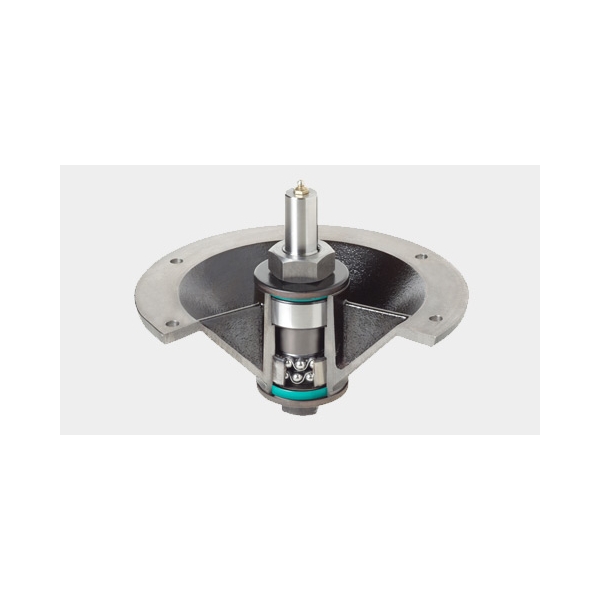

Hercules™ II Spindles

Hercules™ II spindles; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

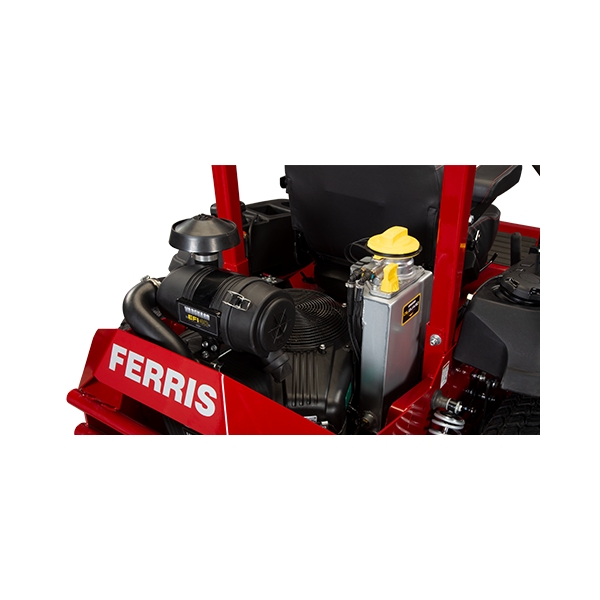

Vanguard Electronic Throttle Control

This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)

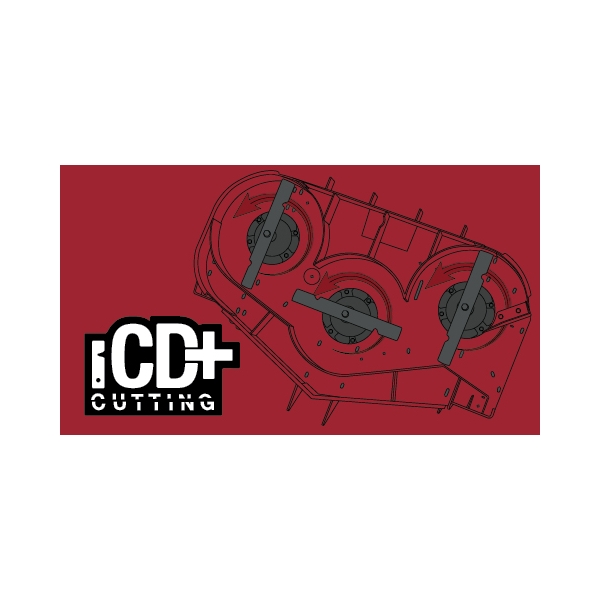

NEW! iCD™+ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results.

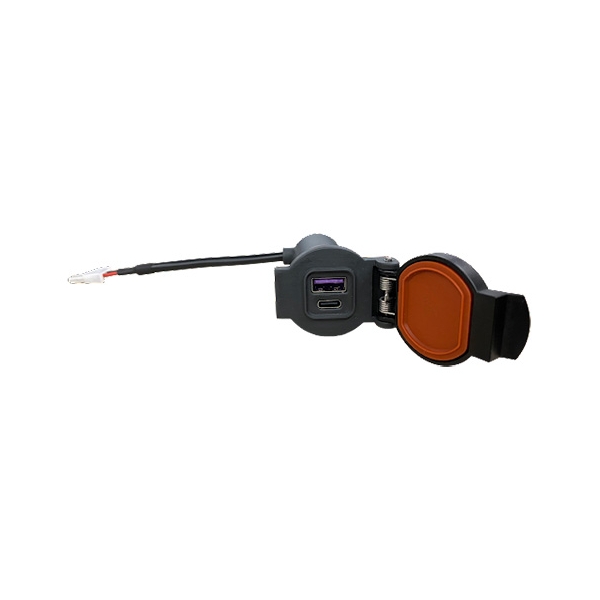

NEW! USB Port

USB Type A & C located on the dash panel for easy access and charging. 2.1A x 2 output and moisture rated to IP67.



Ride-On Mower Warranties†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.



Part Number
5902068
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard™ and Electronic Throttle Control
Engine Power Rating (HP) *
40
Displacement (cc)
993
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
41.6
Cutting Width in(cm)
60 (152)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Hercules™ II cast-iron
Deck Construction
iCD™+ Cutting System, 2-Belt
Deck Discharge Type
Side Discharge
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
26 x 12-12
Ground Speed-Fwd (kph)
0 - 19.3
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2147
Overall Width (mm) Deflector Down / Up
1880 / 1651
Dry Weight (kg)
742
Seat Package
Premium high-back suspension seat with arm rests, adjustable lumbar and back recline

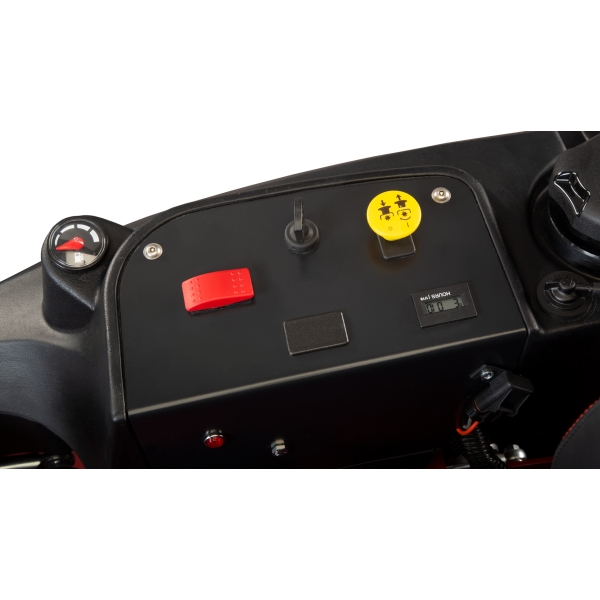

Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
