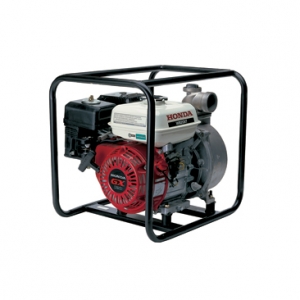

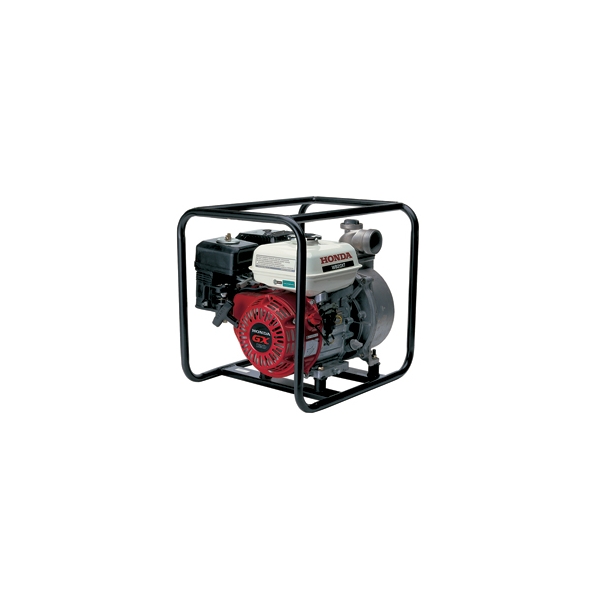

HONDA - WB20XT - VOLUME PUMP

2" VOLUME PUMP - 32M HEAD - 600L MINUTE

More details

WB20XT

INTRODUCING THE WB20XT

INTRODUCTION

The Honda GX120 engine ensures easy starting, easy usage, outstanding fuel economy, low emission and long-lasting durability as well as compact designs

The rubber mount system on full frame type provides stability and delivers smooth running with less vibration



PUMPS

Honda Water Pumps offer a level of uncompromising performance to a wide variety of water transfer applications

Designed for easy starting, priming and dependable service, used throughout the world for over 20 years, Honda water pumps have earned a reputation for unsurpassed reliability and performance

These pumps are known for their durable construction, quality engines and easy portability



TECHNOLOGY

GX120 OHV engine

PERFORMANCE/USABILITY

Starts first time, every time with Honda’s famous one pull easy start system

2” volume water pump

Maximum total head 32m



SPECIFICATIONS

ENGINEGX120
DISPLACEMENT (CC)118cc
FUEL TYPEUnleaded
FUEL TANK CAPACITY2.5 litres
FUEL CONSUMPTION1 l/hr
TOTAL HEAD32m
SUCTION HEAD8m
MAXIMUM PUMPING CAPACITY600 litres
SUCTION PORT DIAMETER50mm
DISCHARGE PORT DIAMETER50mm
MAXIMUM PUMPING CAPACITY600 l/min
SELF PRIMING TIME (AT 5m)110 sec at 5m
PUMP TYPECentrifugal volume pump
OIL ALERTYes
DIMENSIONS455 x 365 x 420
DRY WEIGHT (KG)21
MOUNTING TYPERubber
HOSE BAND/STAINERYes
PRICE$869.00
