THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

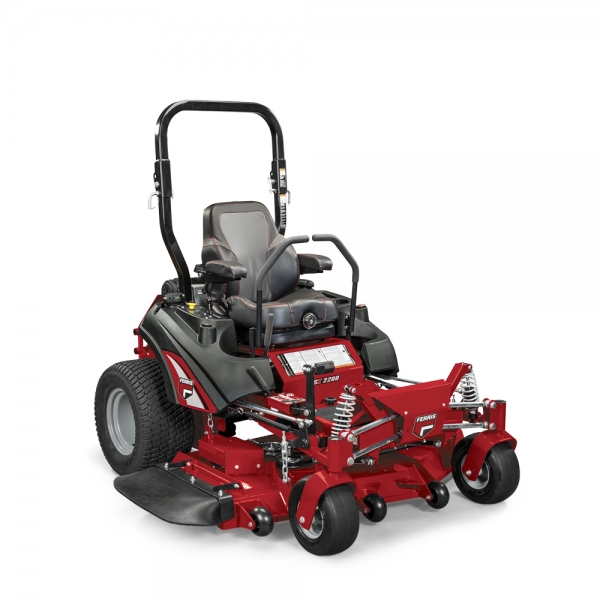

Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A redesigned 2-belt iCD™+ cutting system delivers unrivaled cut quality and the commercial Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.

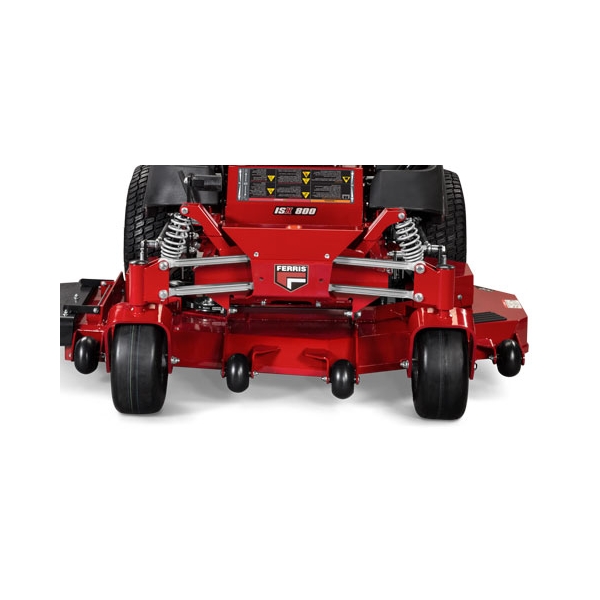

Forefront™ Suspension System
The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

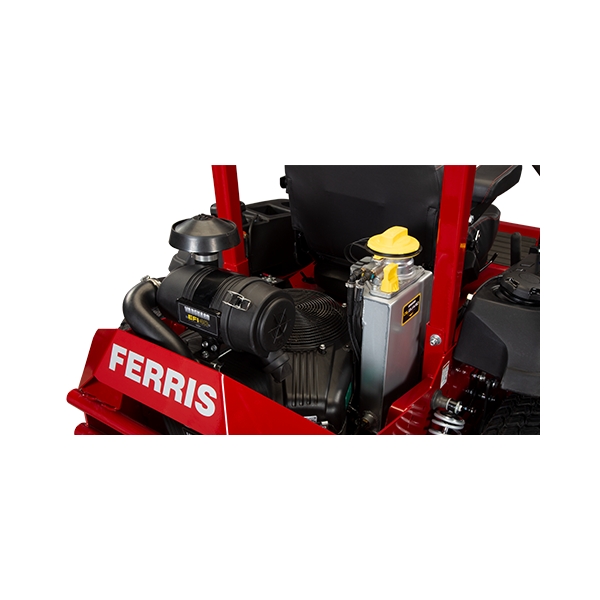

500 Hour Oil Change
Vanguard™ Engines with Oil Guard™ System reduce maintenance time and costs by up to 60%.**

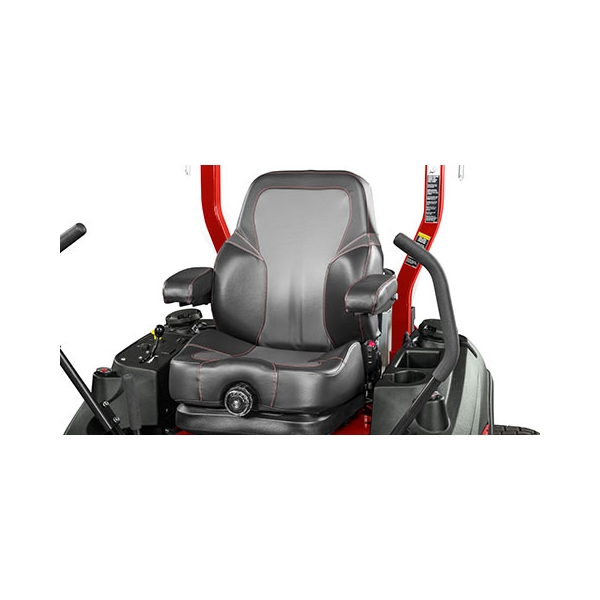

Premium Suspension Seat
Premium high-back suspension seat with armrests, adjustable lumbar and back recline.

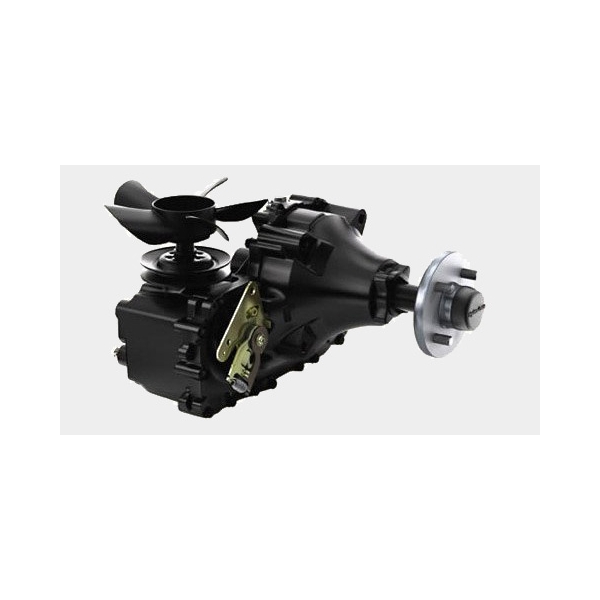

Hydro-Gear ZT-4400™ Transaxles
Dual-commercial transaxles with 8.3" cooling fans to repel debris.

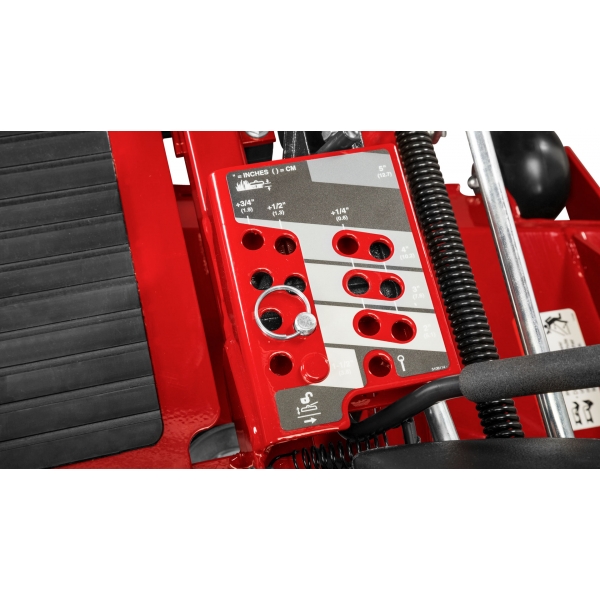

Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5" (38 mm - 127 mm).

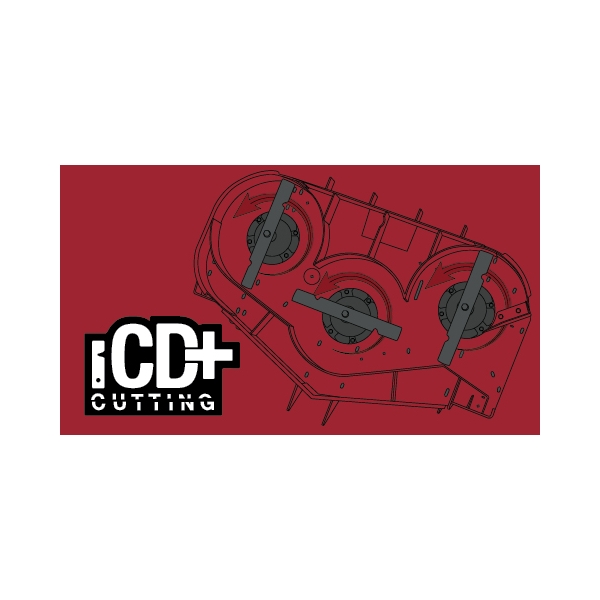

NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results.

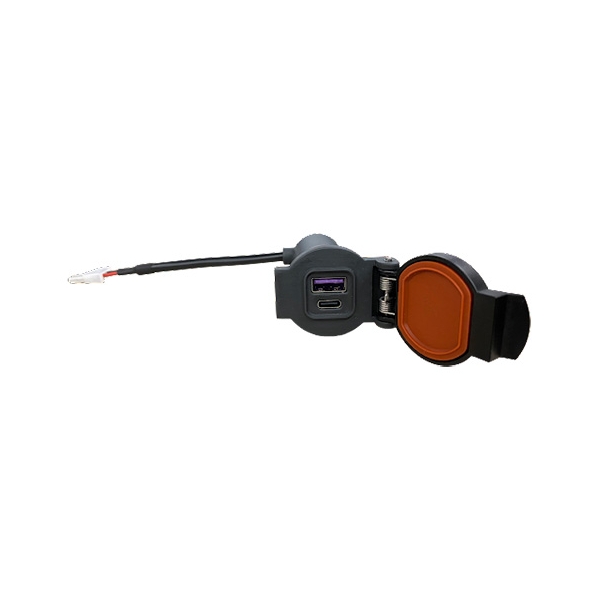

NEW! USB Port
USB Type A & C located on the dash panel for easy access and charging. 2.1A x 2 output and moisture rated to IP67.
Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Part Number
5902081
Engine Brand
Vanguard® 810cc EFI with Oil Guard™
Engine Power Rating (HP) *
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
41.6
Cutting Width in(cm)
60 (152)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Cast-iron greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
24 x 12 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2096
Overall Width (mm) Deflector Down / Up
1880 / 1651
Dry Weight (kg)
638
Seat Package
Premium high-back Suspension Seat with arm rests, adjustable lumbar and back recline.
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
