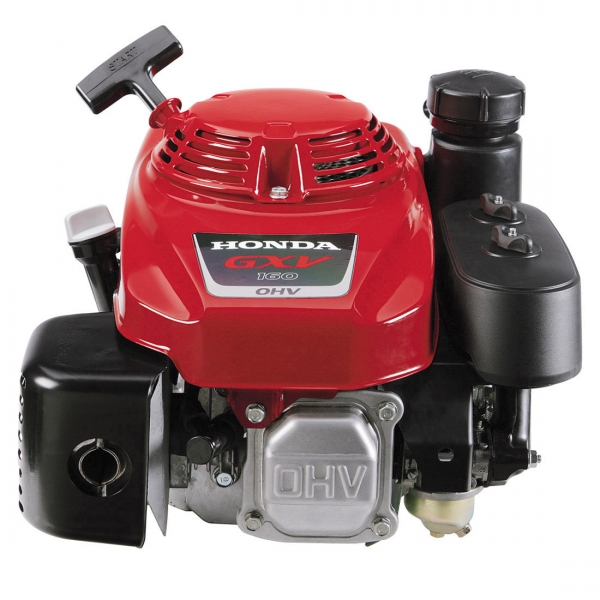

HONDA ENGINE GXV160

Quality and performance come standard. Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out. Common Applications Lawn mowers Commercial lawn and garden equipment Forestry equipment Construction / industrial equipment Agricultural equipment

More details

More info

Fuel Efficient, High Output Operation

Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
OHV design for increased efficiency and optimal power transfer
High compression ratio for better fuel efficiency

Smooth Performance

Precision engineered components result in lower vibration
Ball bearing supported crankshaft for greater stability

Exceptionally Quiet

Large capacity, multi-chamber exhaust system
Reduced mechanical noise due to light weight, noise-reducing materials
Forged steel crankshaft and rigid crankcase
Helical cut gears
Sophisticated air intake system

Proven Reliability

Oil Alert
Cast iron cylinder sleeve
High quality materials, fit, and finish
Dual element air cleaner
Fuel Valve

Easy to Use and Maintain

Large fuel tank
Easily accessible spark plug

Easy Starting

Heavy duty recoil starter
Automatic mechanical de-compression system

Emissions Compliant

EPA certified
No catalyst necessary

Available Options

Electric start
Spark arrester available

SPECIFICATIONS

GXV160
Engine Type	Air-cooled 4-stroke OHV
Bore x Stroke	68 X 45 mm
Displacement	163 cm3
Net Power Output*	4.3 hp (3.2 kW) @ 3,600 rpm
Net Torque	7.1 lb-ft (9.6 Nm) @ 2,500 rpm
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Compression Ratio	8.0:1
Carburetor	Float Type
Ignition System	Transistorized magneto
Starting System	Recoil
Lubrication System	Splash
Governor System	Centrifugal Mechanical
Air Cleaner	Dual element
Oil Capacity	0.69 US qt (0.65l)
Fuel Tank Capacity	1.5 U.S. qts (1.4 liters)
Fuel	Unleaded 86 octane or higher
Dry Weight	32 lb (14.5 kg)

DIMENSIONS

GXV160
Length (min)	16.3" (415mm)
Width (min)	14.1" (359mm)
Height (min)	13.9" (354mm)
